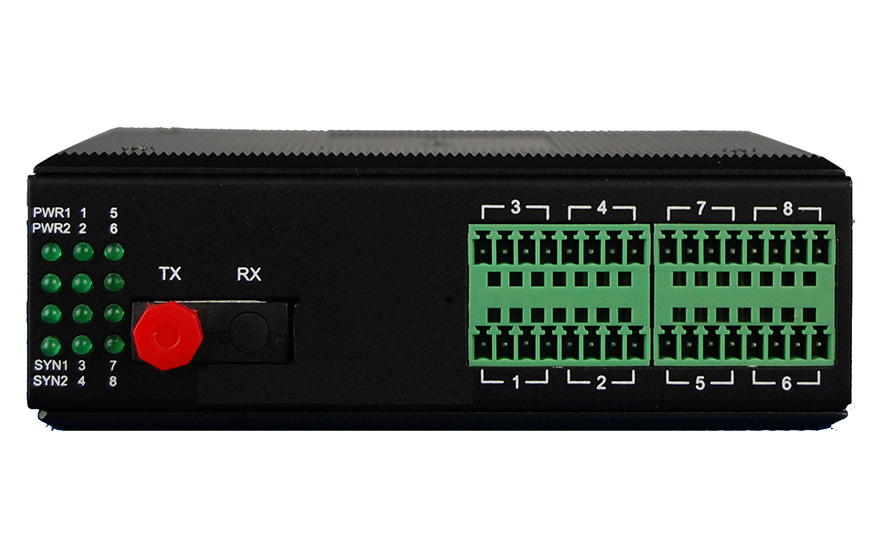

                                                                                  Industrial 1-2 channel CAN-bus fiber modem

                                                                                  Type:FCP-C1/2G Message

                                                                                  Description:An optical port,1-2 CAN BUS Interface;Simultaneous transmission of 1-2 CAN bus interfaces on the fiber.

                                                                                  Product Description
                                                                                          The CAN optical fiber cat can convert the CAN bus signal into an optical signal and transmit it on the optical fiber, which has the effect of extending the communication distance of the CAN bus. At the same time, the use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security and confidentiality of data communication, and can be widely used in various industrial control, process control, and traffic control occasions. It is especially suitable for banks, electric power, and departments and systems that have special requirements for electromagnetic interference environments.
                                                                                  Functional Properties
                                                                                  ◆ Integrated circuits based on independent intellectual property rights;
                                                                                  ◆ Provide 1-2 CAN bus interfaces and 1 optical port;
                                                                                  ◆ CAN data is fully transparent, baud rate is self-adaptive, no setting is required;
                                                                                  ◆ CAN interface maximum number of nodes 128; CAN interface maximum rate 0-1Mbps;
                                                                                  ◆ The CAN interface speed complies with the international CAN1.0 and CAN2.0 standards;

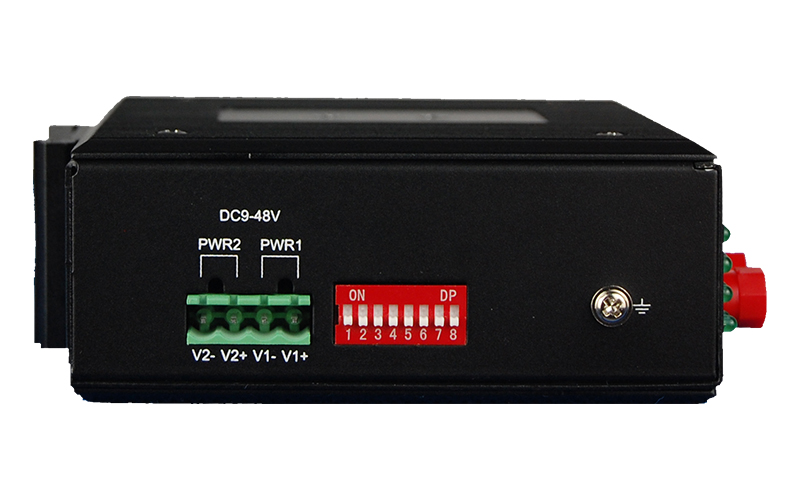

                                                                                  ◆ Support wide range AC / DC input, support internal isolation, redundant dual power input, power supply support overload protection, anti-reverse protection;
                                                                                  ◆ Meet the requirements of industrial level IV electromagnetic compatibility;
                                                                                  ◆ Super lightning protection function: anti-lightning, anti-induction high voltage, anti-surge, etc .;
                                                                                  ◆ Fanless heat dissipation, reducing repair time;
                                                                                  ◆ IP40 enclosure protection level, can withstand the test of harsh environment;

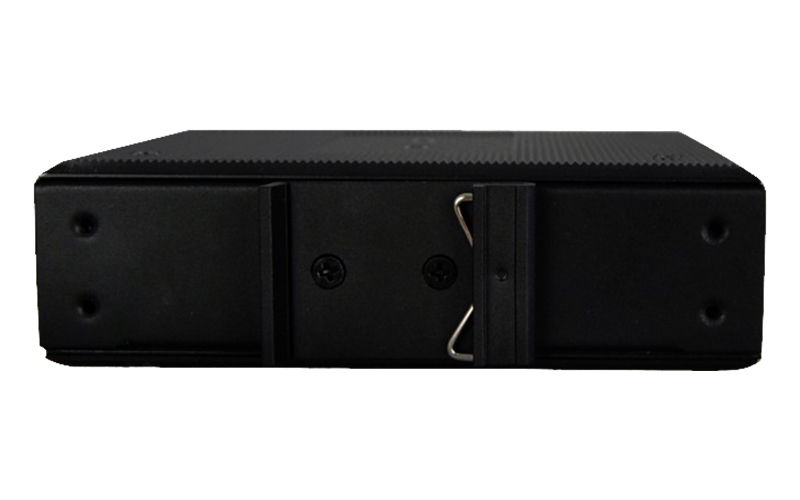

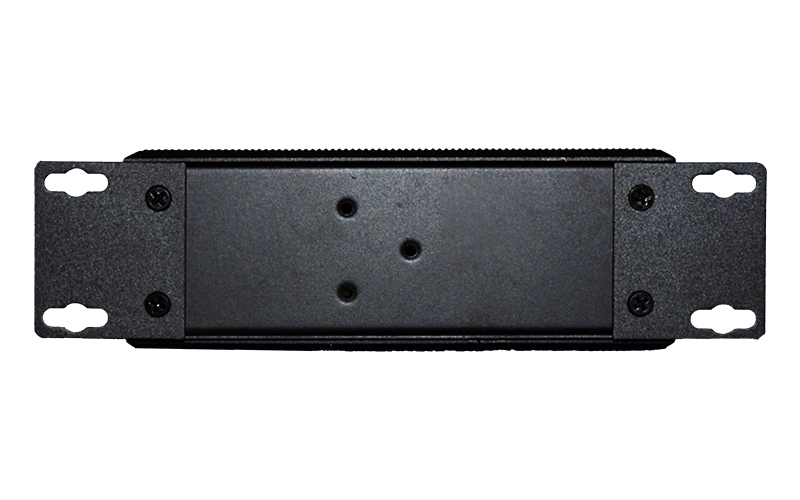

                                                                                  ◆ Rail or wall mounting;
                                                                                  ◆ Wide temperature type: working temperature -40 ℃ ~ + 85 ℃;
                                                                                  ◆ All models pass 100% baking machine test, warranty period: 5 years;
                                                                                  ◆ CAN interface with lightning protection, anti-radar to GB / T17626.5 (IEC61000-4-5) short-circuit current wave 10 / 700μs, open-circuit peak output voltage 6KV standard.
                                                                                  Technical Parameters
                                                                                  ◆ Fiber
                                                                                  Optical port: 1
                                                                                  Optical fiber: single fiber double fiber
                                                                                  Optical fiber interface: FC / SC / ST optional
                                                                                  Wavelength: 850nm / 1310nm multimode; 1310nm / 1550nm single mode
                                                                                  Transmission distance without relay: 20 ~ 120Km
                                                                                  Typical transmit power:  1310 / 1550nm single mode: ≥-9dBm
                                                                                  Multimode 850nm: -18dBm
                                                                                  Multimode 1310nm: -25dBm
                                                                                  Acceptance sensitivity range: -28dBm ~-40dBmm
                                                                                  ◆ CAN Bus interface
                                                                                  Protocol: Comply with international CAN1.0, CAN2.0 standards
                                                                                  Rate: 0 ～ 1000Kbps
                                                                                  Physical Interface: Industrial Terminal
                                                                                  CAN definition: CANH, CANL, GND
                                                                                  ◆ Electrical and mechanical characteristics
                                                                                  System power: AC7V ～ 50V; DC9-55V;
                                                                                  Power consumption: ≤2W
                                                                                  Appearance structure: 133mm (length) x 120mm (width) x 50.0mm (height)
                                                                                  ◆ Working environment
                                                                                  Working temperature: -40 ℃ — + 85 ℃
                                                                                  Storage temperature: -40 ℃ — + 85 ℃
                                                                                  Operating humidity: 0% —95% (non-condensing)
                                                                                  MTBF: ＞ 100,000 hours

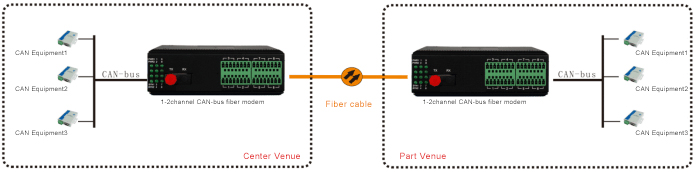

                                                                                  Application Scheme
                                                                                  Industrial 1-2 channel CAN-bus fiber modem
                                                                                  ?
